Van de Stadt Helena 38

Description

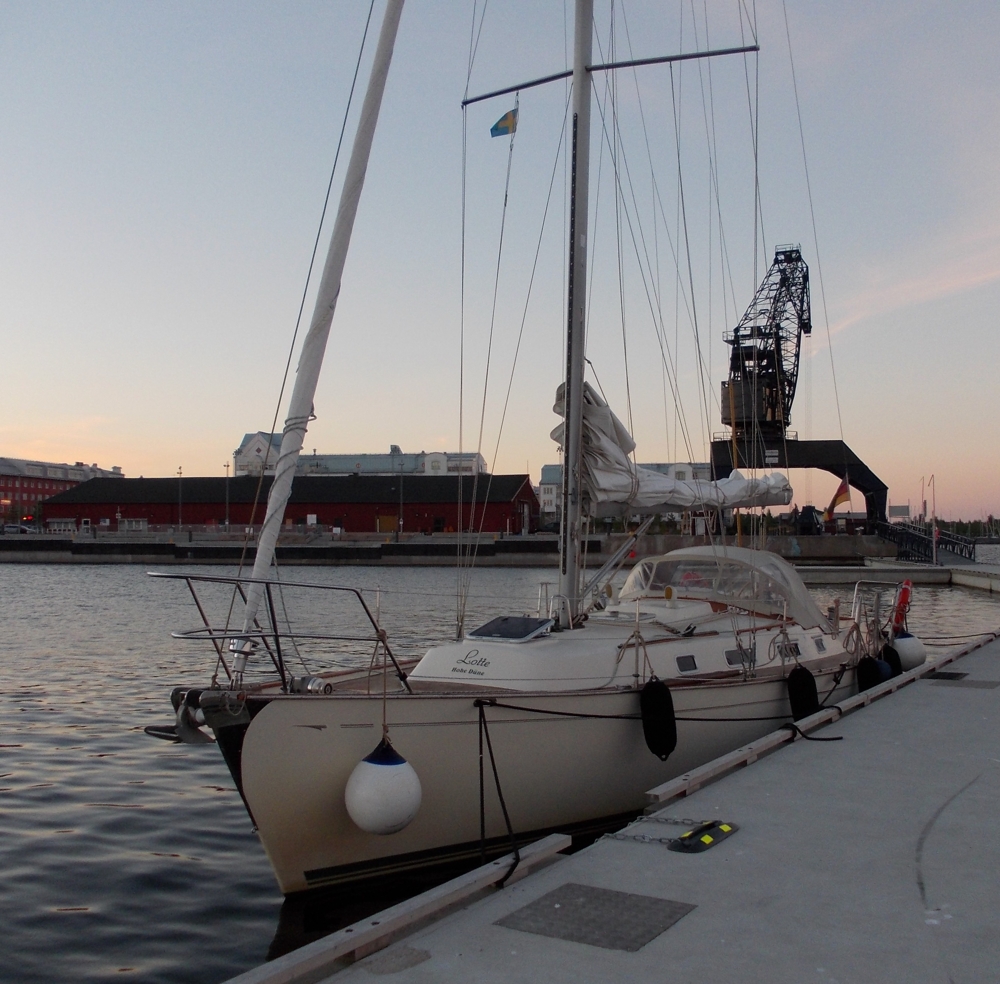

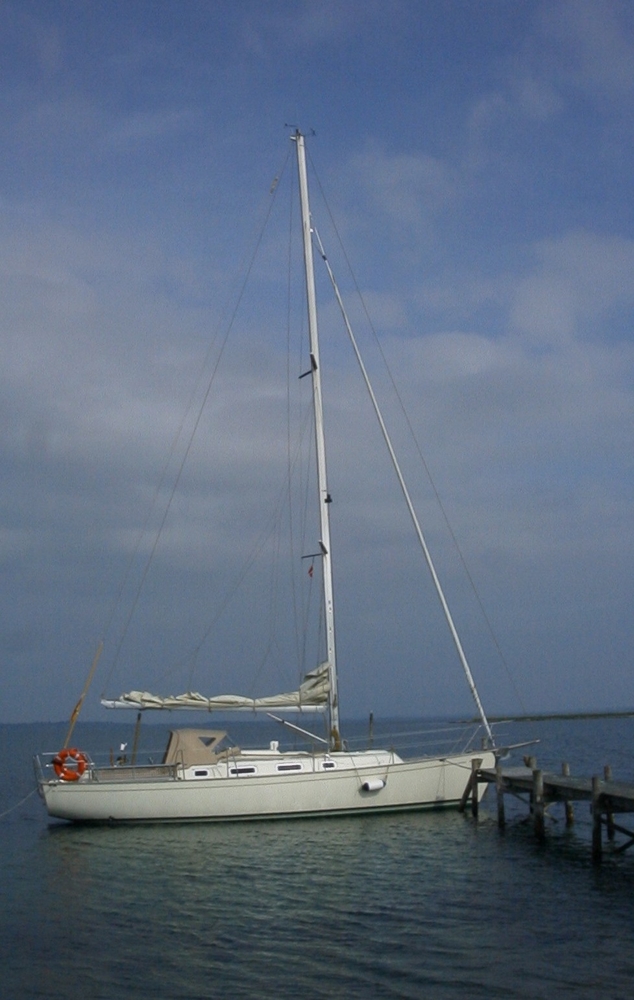

The sailing yacht “Lotte” is the prototype of the Dream 38, built according to the model “Helena 38” of the Dutch designer Van de Stadt.

It is identical with the popular FORNA 37, which has been often tested for holiday disruptions, world travels and regattas under extreme conditions. We sailed with her on the Baltic Sea and on the Kattegat in Denmark, Sweden, Norway and Finland.

Design line, keel, rudder and sailing combine the latest trends and technologies with traditional wood construction. If you love boats made of wood and high-quality handmade, you will like Lotte! Both inside and on deck, their teak and mahogany give an elegant character.

The hull is constructed in sandwich construction from cedar wood and epoxy resin (see hull).

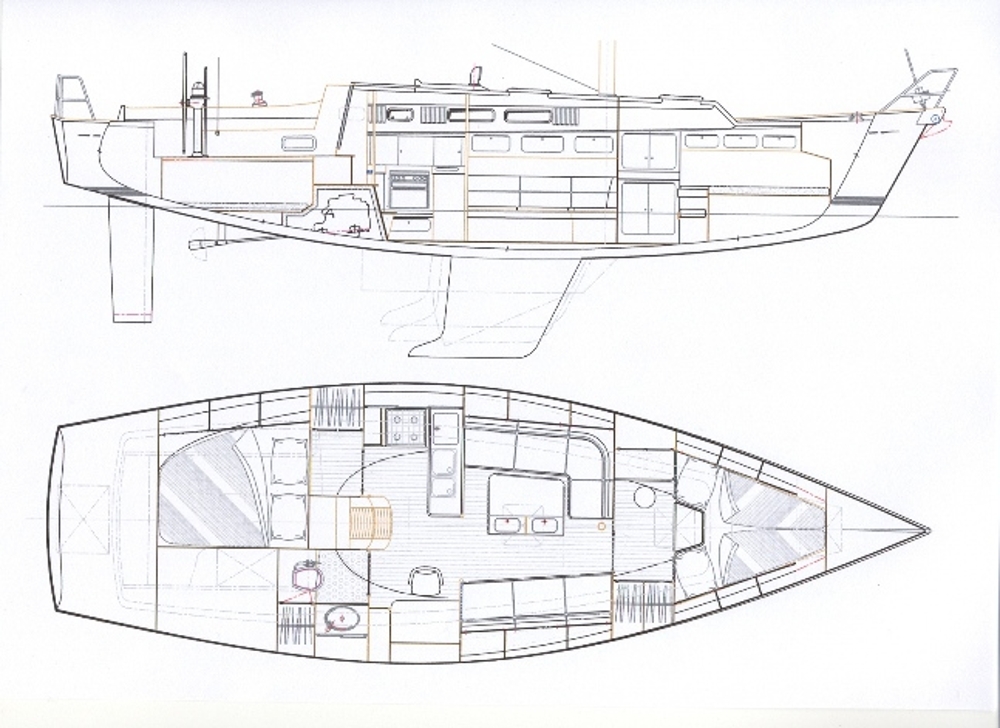

It has a spacious interior that invites you to a cozy stay. In the foreboat and in the eighth cabin, the buoys are for two people each, so that one can also take longer sailing trips to four. We mostly sailed them two.

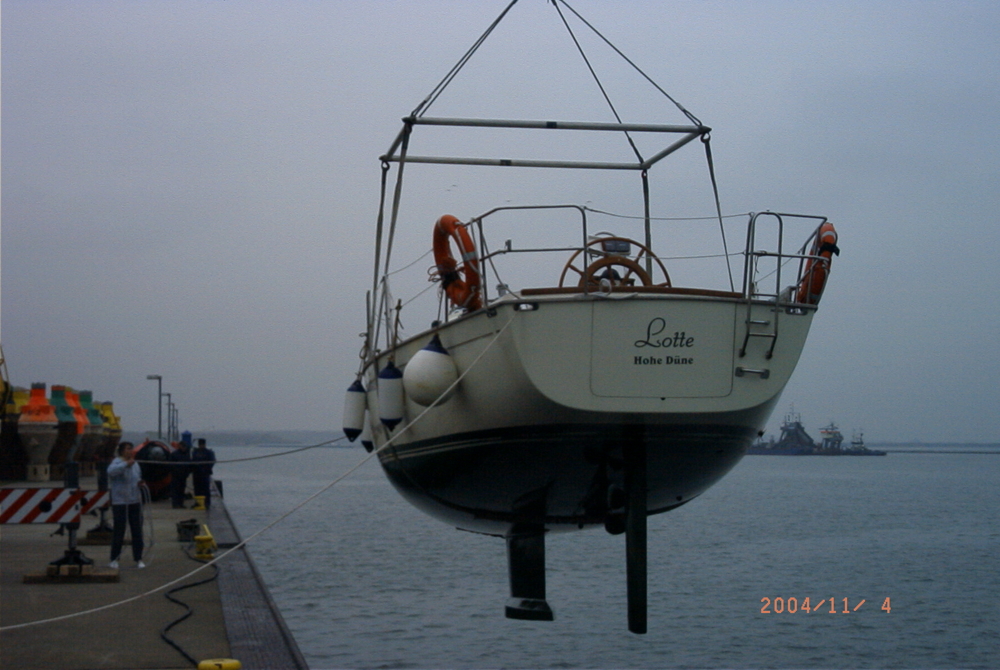

At the rear there is a foldable bathing platform - it can be opened by hand and allows easy access to the water, which is also possible via a foldable bathing ladder.

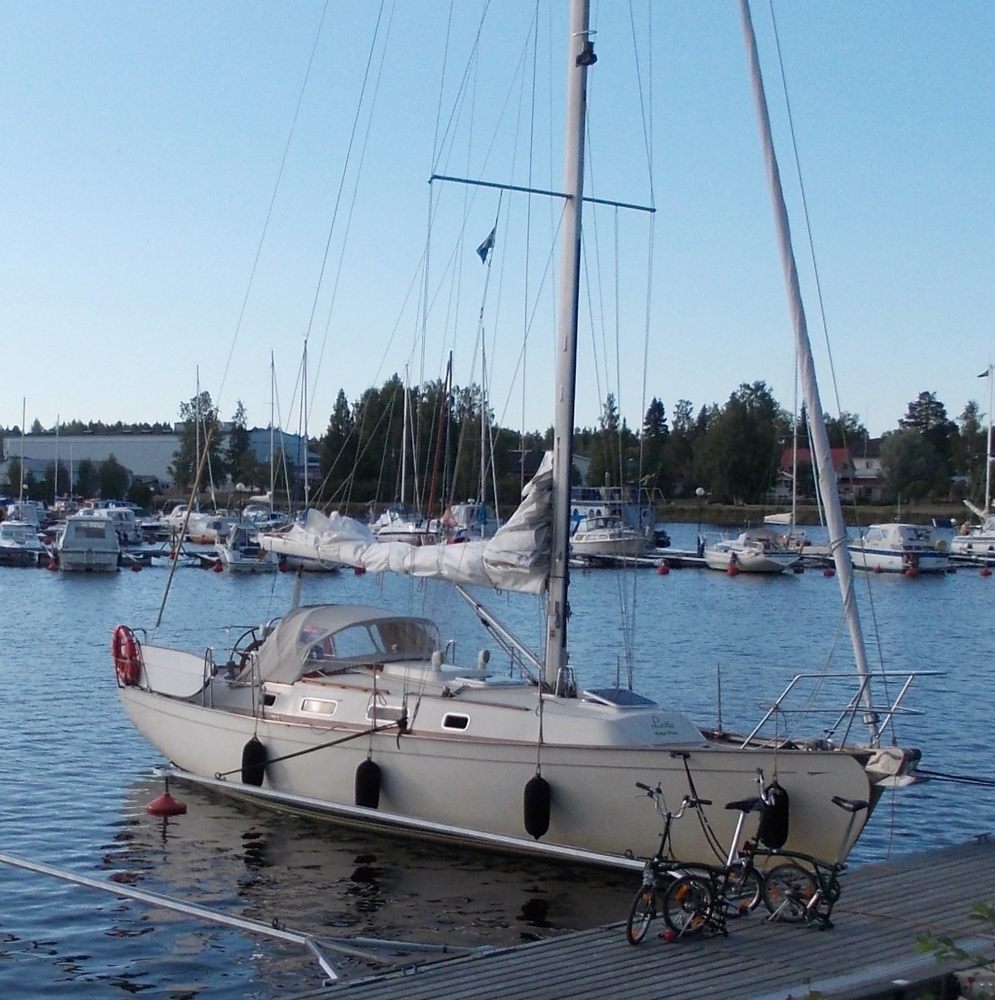

In the spacious back skis, there is a lot of storage space that allows you to accommodate sailing accessories as well as luggage or folding bikes.

EXPORT DATA:

hull, deck and control

• hull and deck in GRP sandwich construction with NGA gel coat and ISO polyester, reinforced by multiaxial glass fiber mesh / hull woodcore, glass fiber/epoxy sandwich construction, painted with AWLGRIP 2000
• Underwater area in full laminate
• decorative strips in gel coat
• Teak strip as a cover of the foot rail and barbar with additional attached
Stainless steel bar (A4 quality)
• Rudder shaft stainless steel, 2-fold mounted, Rudder blade GRP, covered Notruder shaft on deck,
Notruder arm

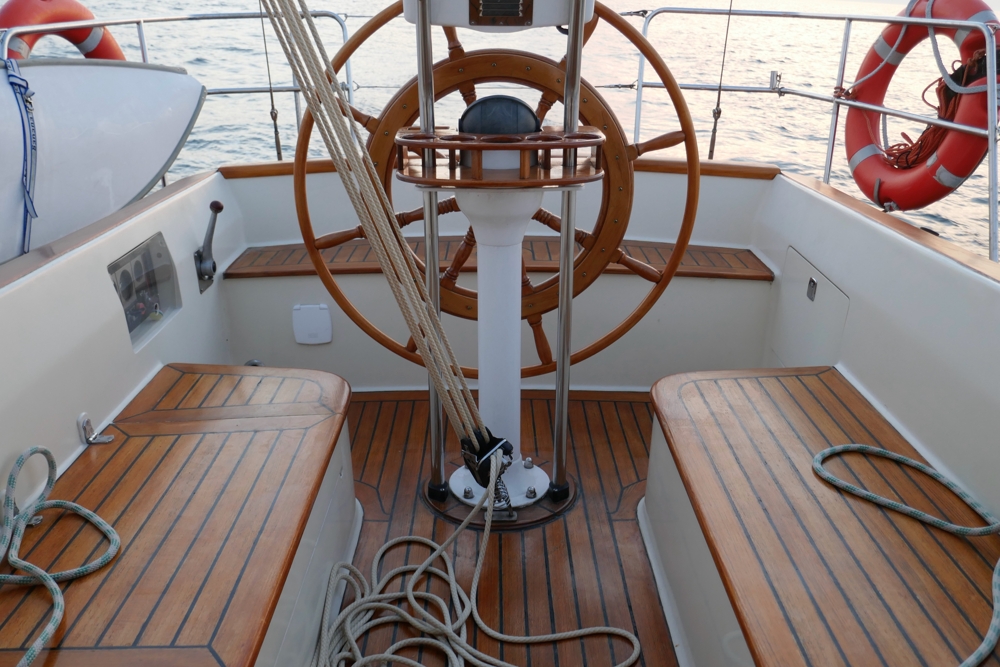

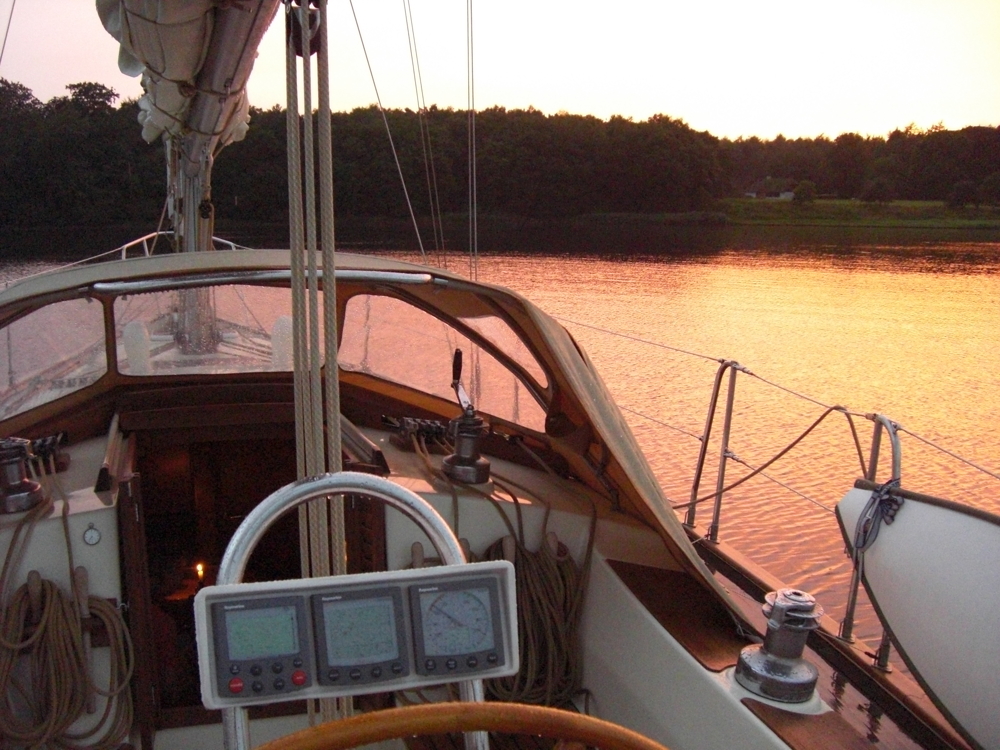

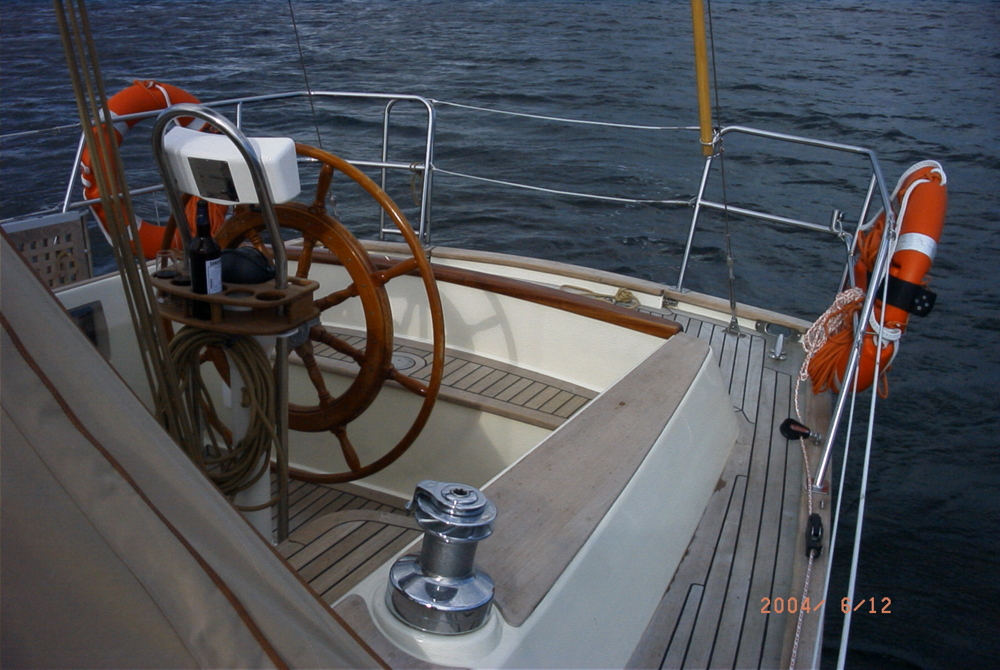

• Control column with compass, wheel control, Whitlock-Cobra control system

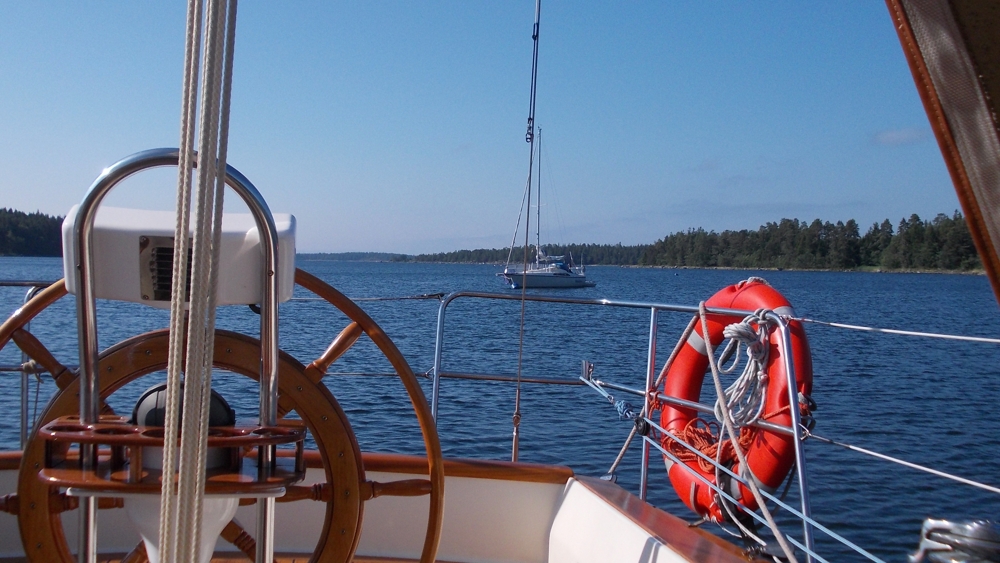

• Classic wood wheel STAZO
• Self-tax system: Raymarine and Jefa drive
• Display devices
• lead kiel, with stainless keel bolts. Festkiel: 1,50 m

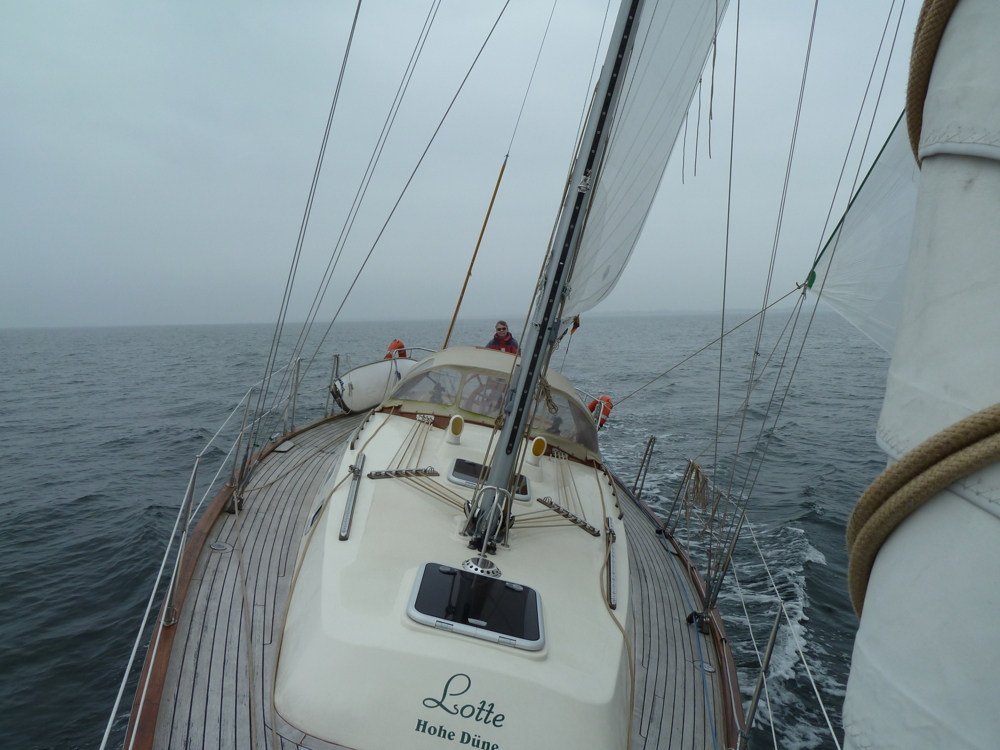

Deck and cockpit equipment

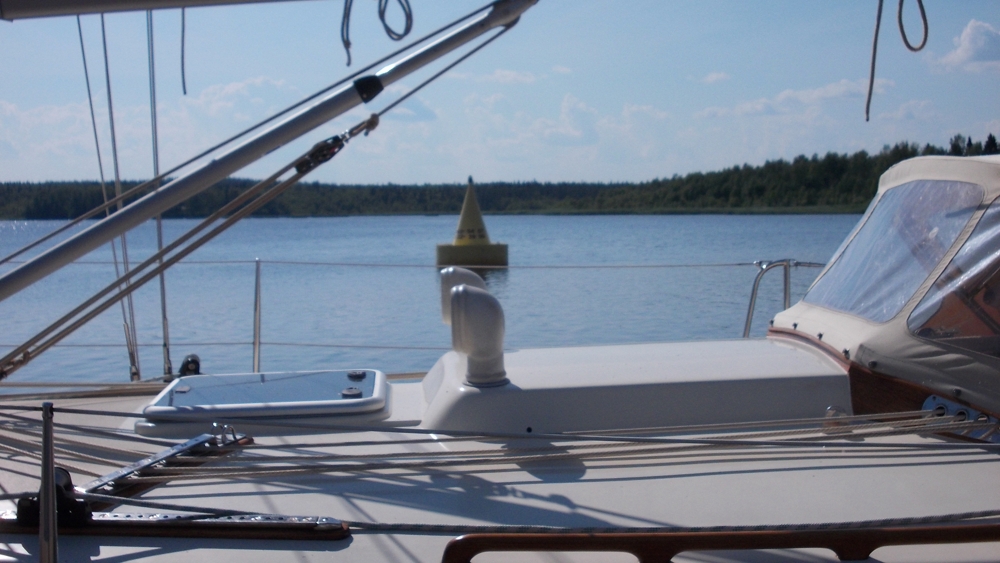

• 2 skylights
• 9 windows, 4 on each side, 1 in the cockpit
• Sliding locomotive above the decline
• Extra sprayhood
• 6 aluminium pads incl. spring clips
• Reling support, bow and rear basket 25 mm stainless steel AISI316
• Handling on construction

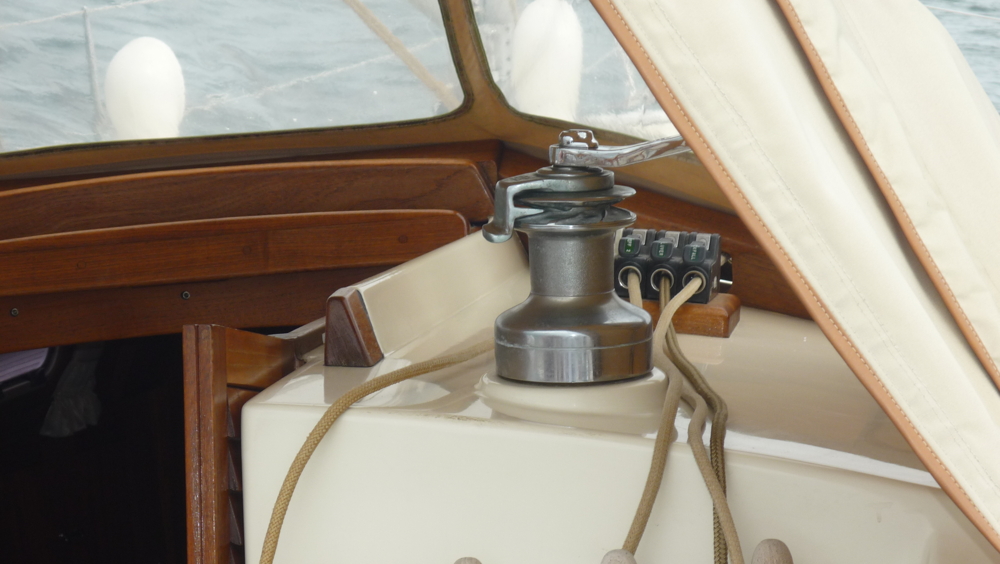

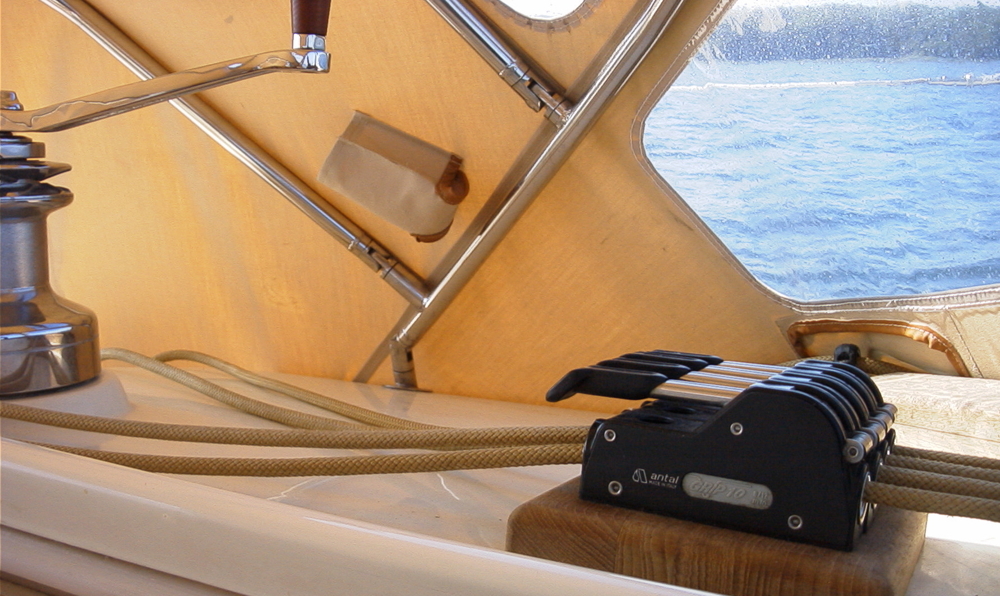

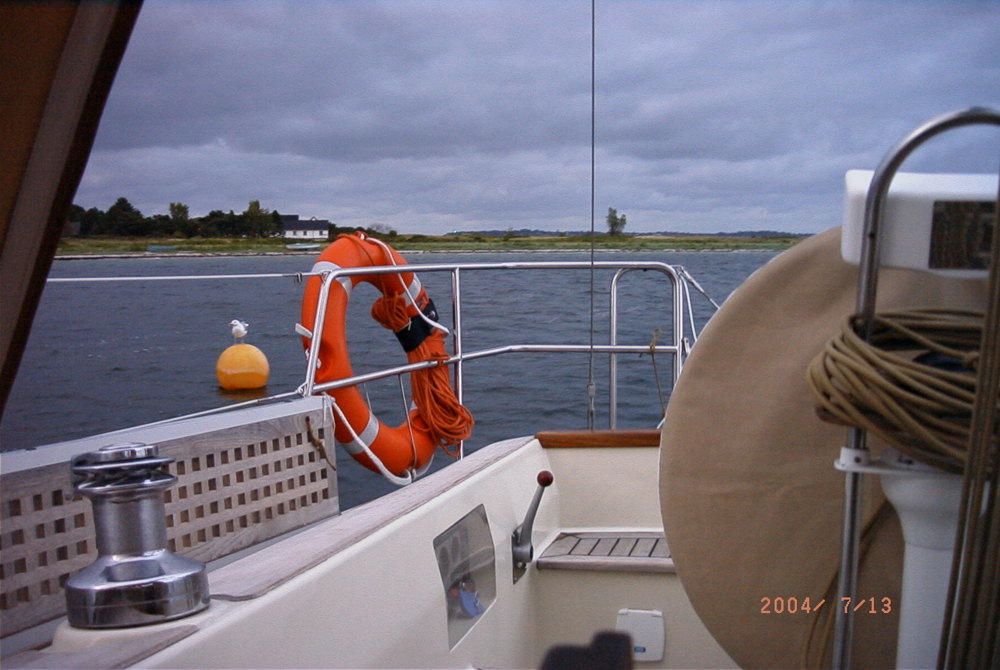

• Two self-catching winches ST 44
• Two self-catching fall and reef wins ST 40
• Two adjustable Fockschot guide rails (Genoa guide rails)
• Traveller for Großschot
• trap stoppers
• Two safety eyes in the cockpit
• Seat benches in cockpit with teak
• Two water drains in the cockpit
• Backskist and storage space in the rear
• Large Backskist Stb. The cockpit
• Separate gas box with drain to the outside for 2x6 kg gas bottles

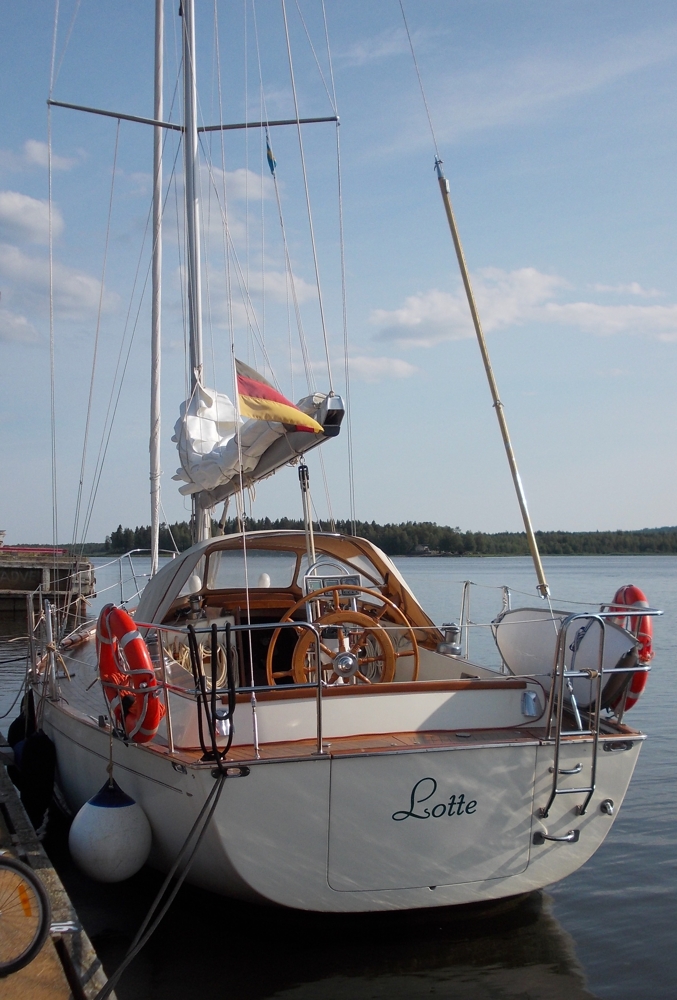

• Bathing ladder and integrated folding platform at the rear
• Anchor box with room for fenders and festive lines
• Electric anchor winch Lofrans Cobra 1000 W/12 V

Mast, Rigg and Sailing

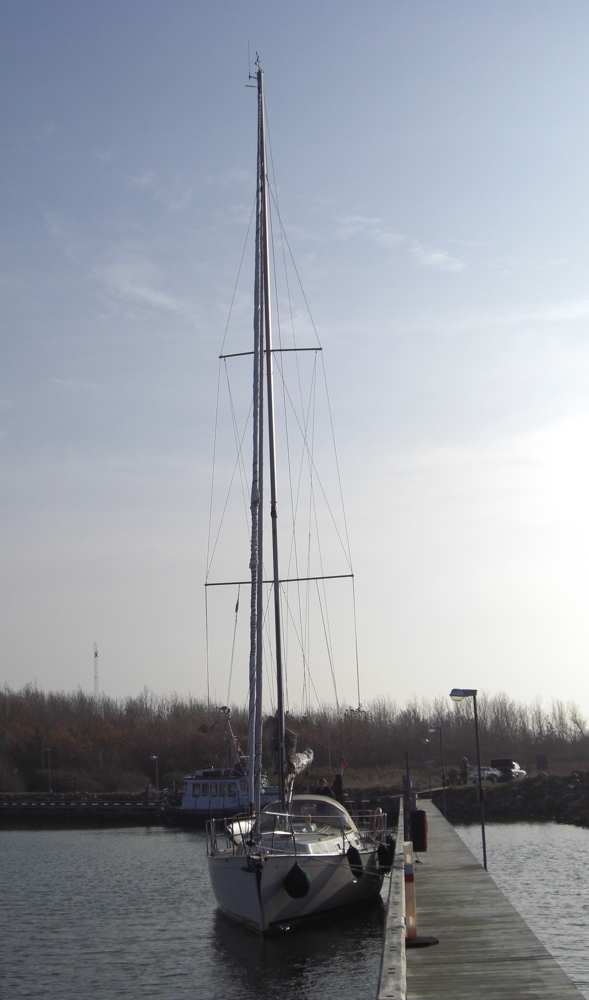

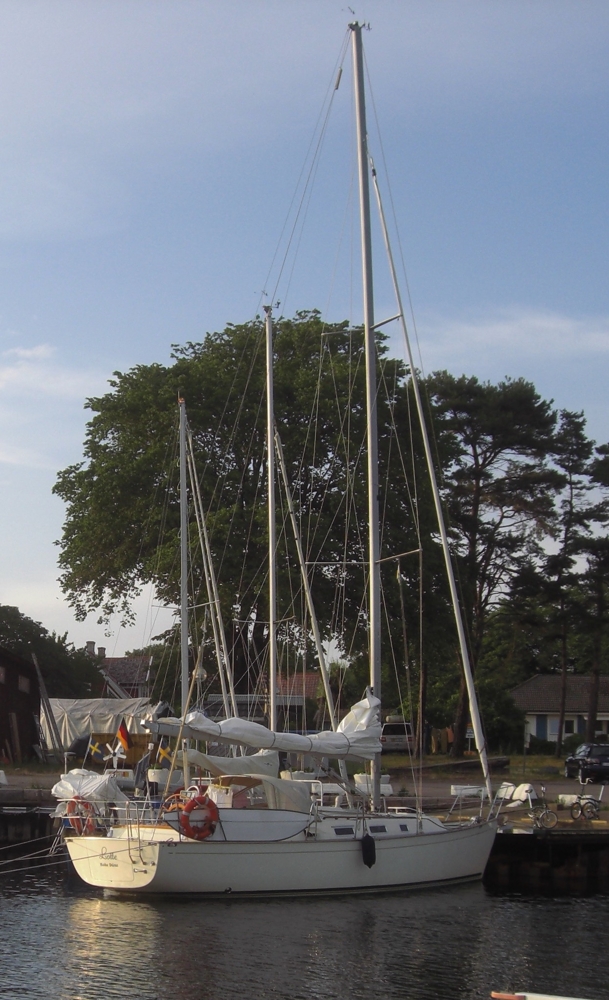

• Sparcraft Mast F460, length 16.5 m, two seedlings, passage height 18.25 m
• Sparcraft Großbaum F810, length 5,30 m
• Sparcraft tree pickup
• Want and stagen in stainless steel 8 and 7 mm
• Stainless steel bolts M16 and M12
• Reversal blocks on the deck

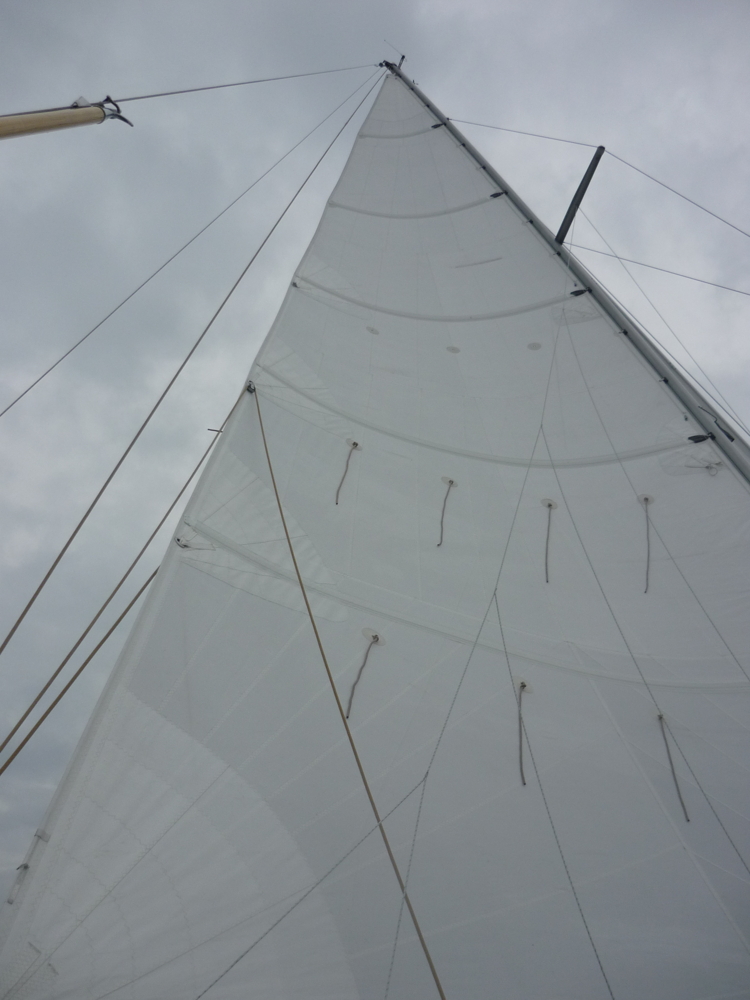

• Sailed mainsail, 46 square metres (headboard, intermediate and slat carriages), and
Ronstar slat joints) with Lazy-Jacks, three rows of reefs, single-line reef system deflected
in the cockpit
• Rolling stock 29.5 sqm
• Gennaker 130 sqm (Banmar-Rollgen)

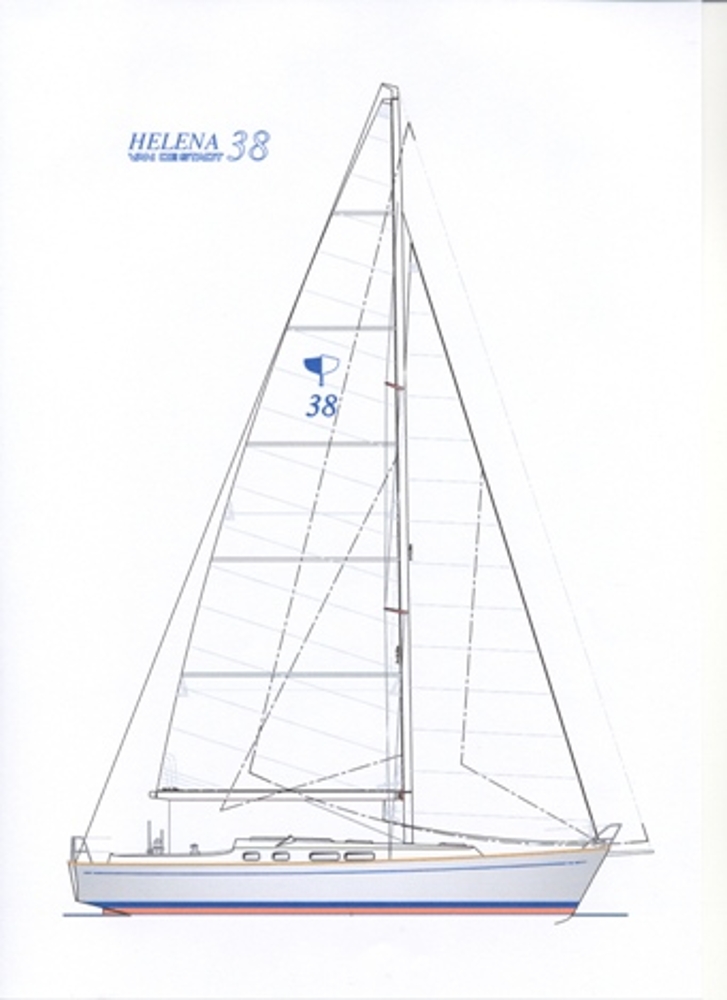

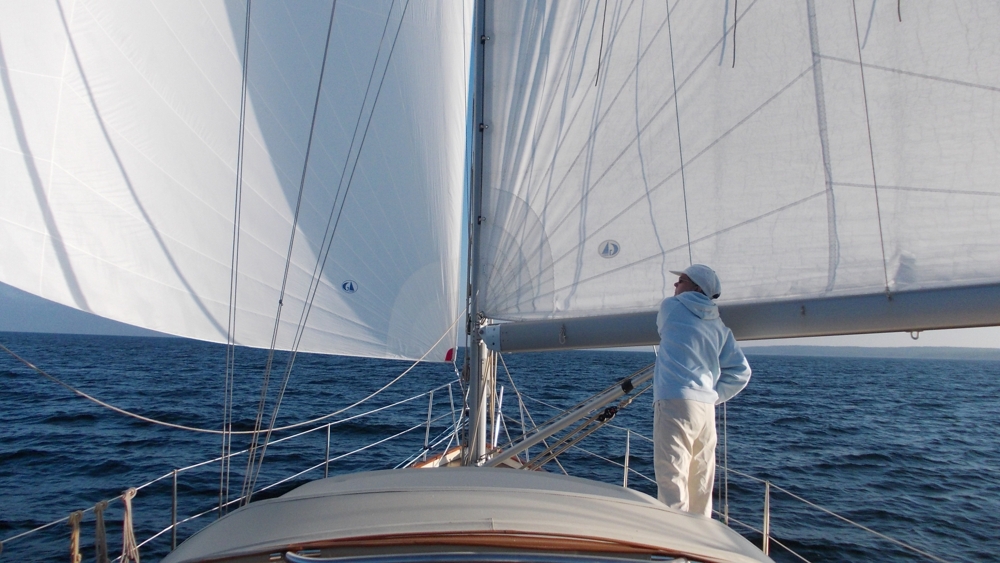

• The 7/8 Rigg works with a high-aspect shock. In combination with the
Mainsail is easy to use and ensures an optimal propulsion in connection with the excellent aerodynamics.

Interior equipment, machine, water and electrical

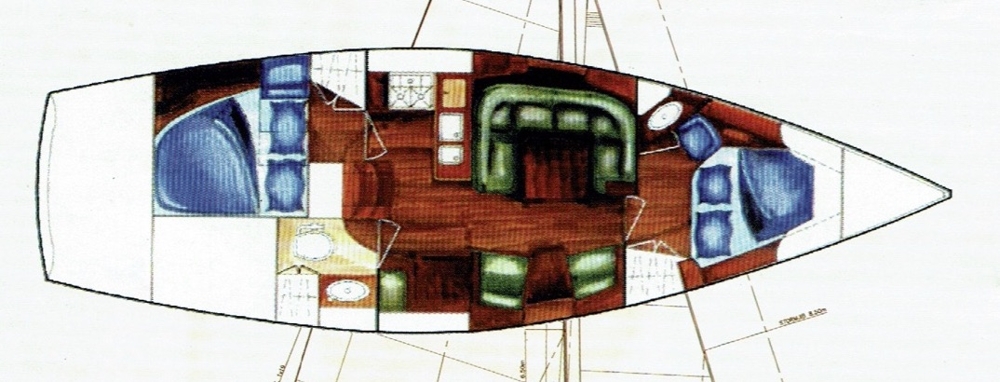

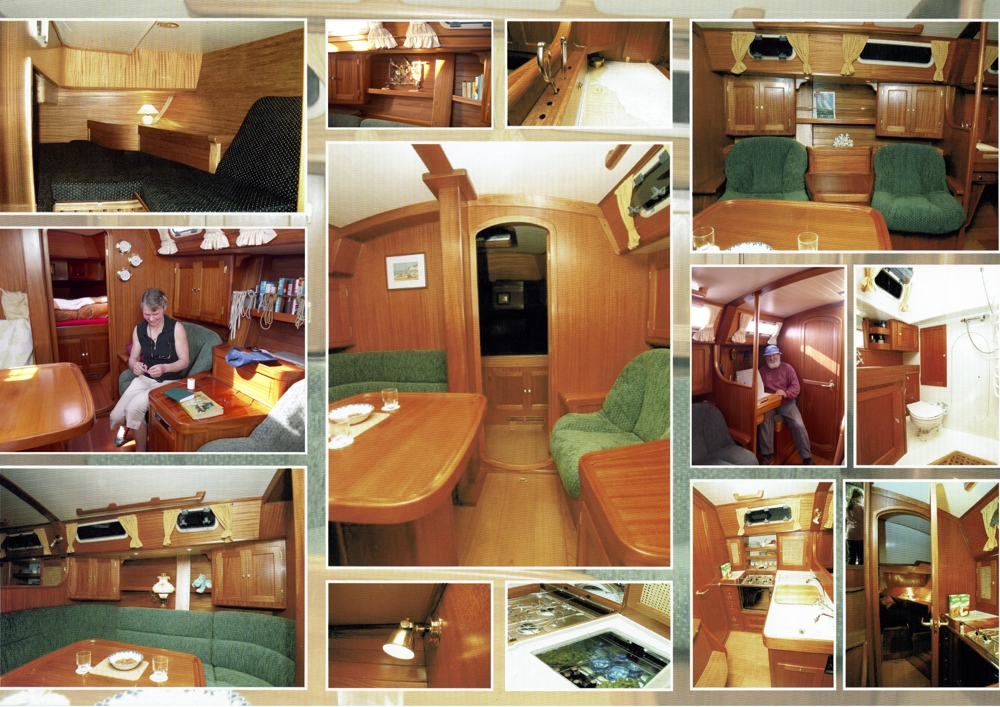

• Two cabins plus salon
• The owner cabin is in the front ship with its own sink, large cabinet, wardrobe
and bench seat
• double bed 214 x 140 x 80 mm

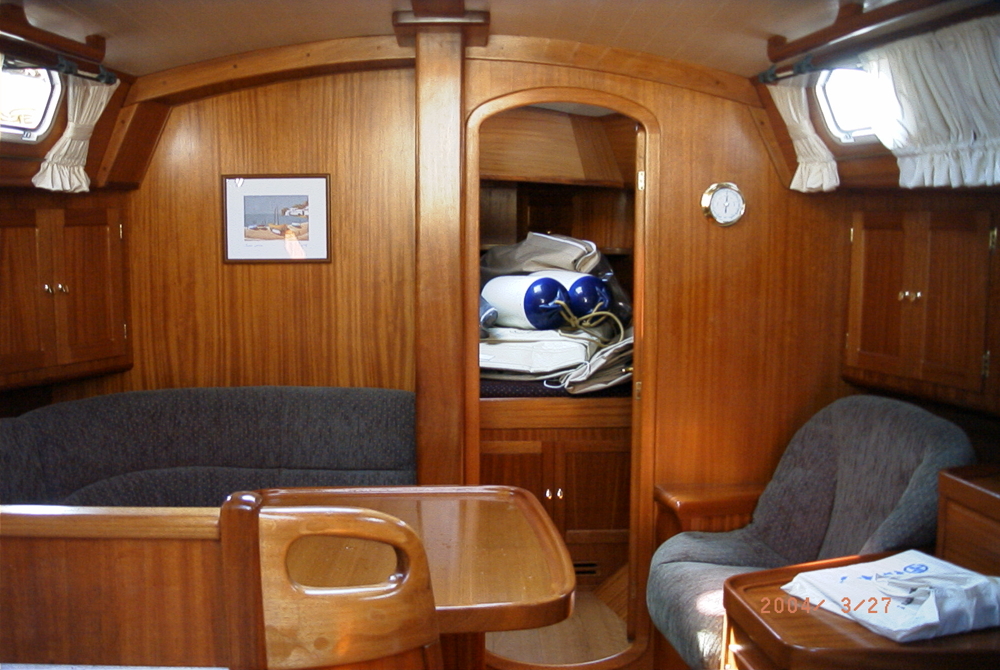

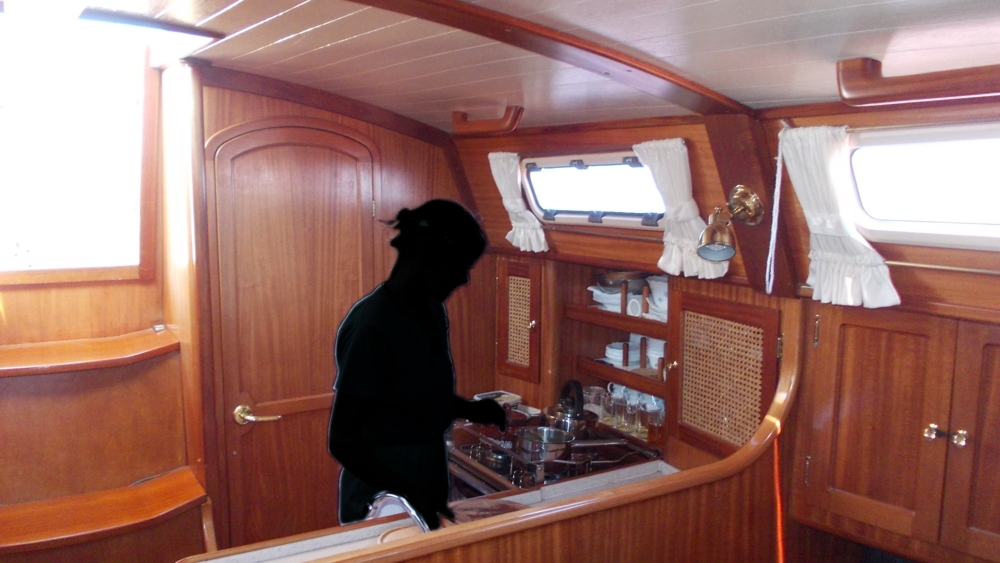

• Large salon with U-Sofa, two single seats, kitchen and card table
• Radio (Autoradio JVC) and Quadral speakers
• Webasto floor heating for the salon
• All areas that will enter with damp weather clothing are against moisture
protected

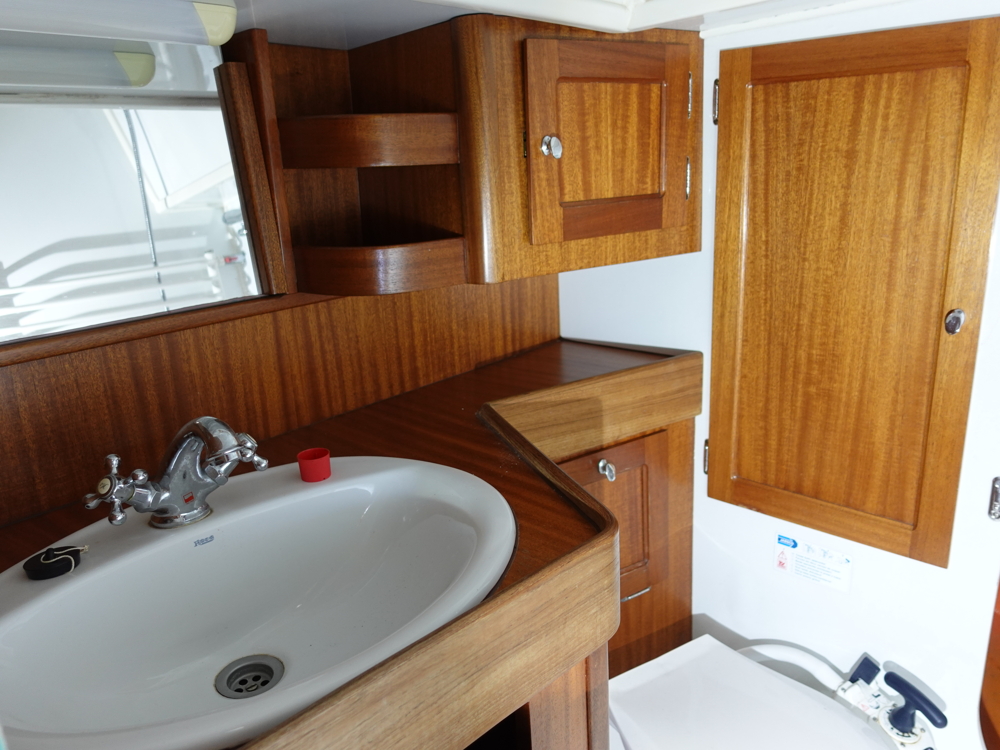

• The separate toilet area has a wetware cabinet
• Extra radiator in the toilet room
• The Achterkajüt has a double bed 204 x 165 x 85 mm

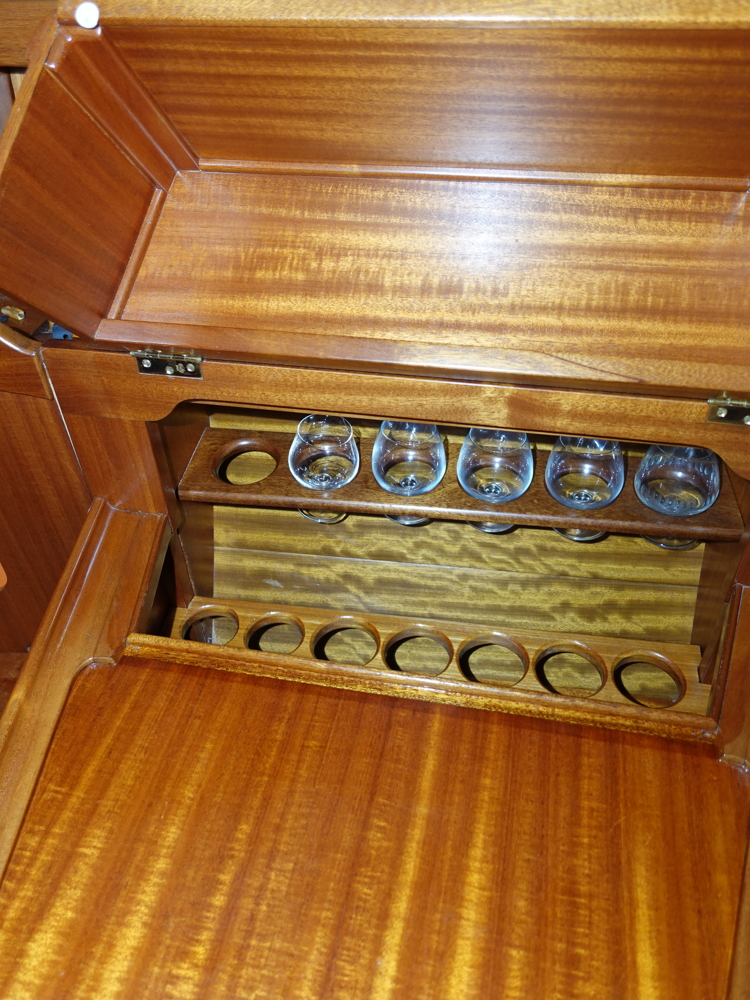

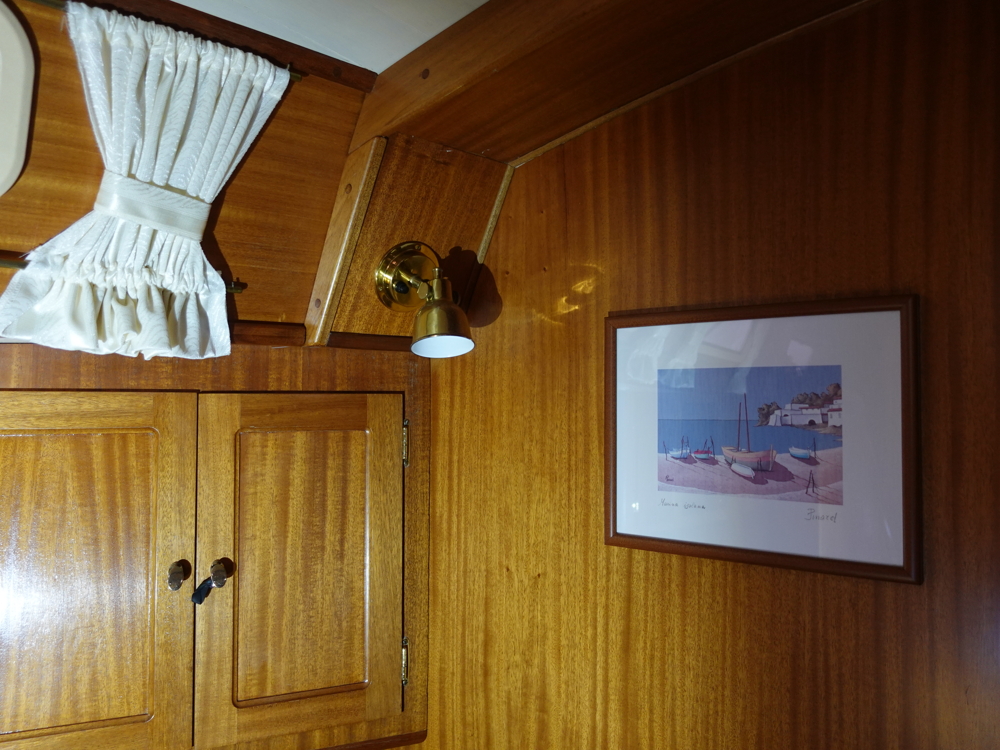

• Interior design in selected, bright mahogany
• Upholstery in 120 mm foam 35 kg/cbm

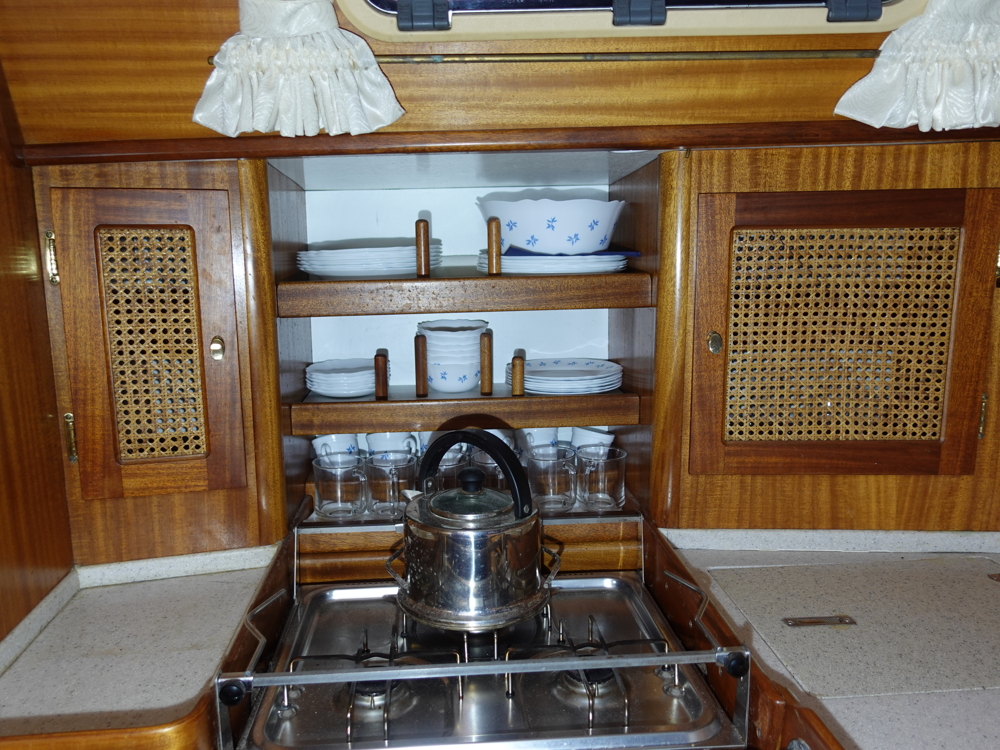

• 3-flame gas stove with oven
• Cooling box 102 l with air-cooled, electric cooling

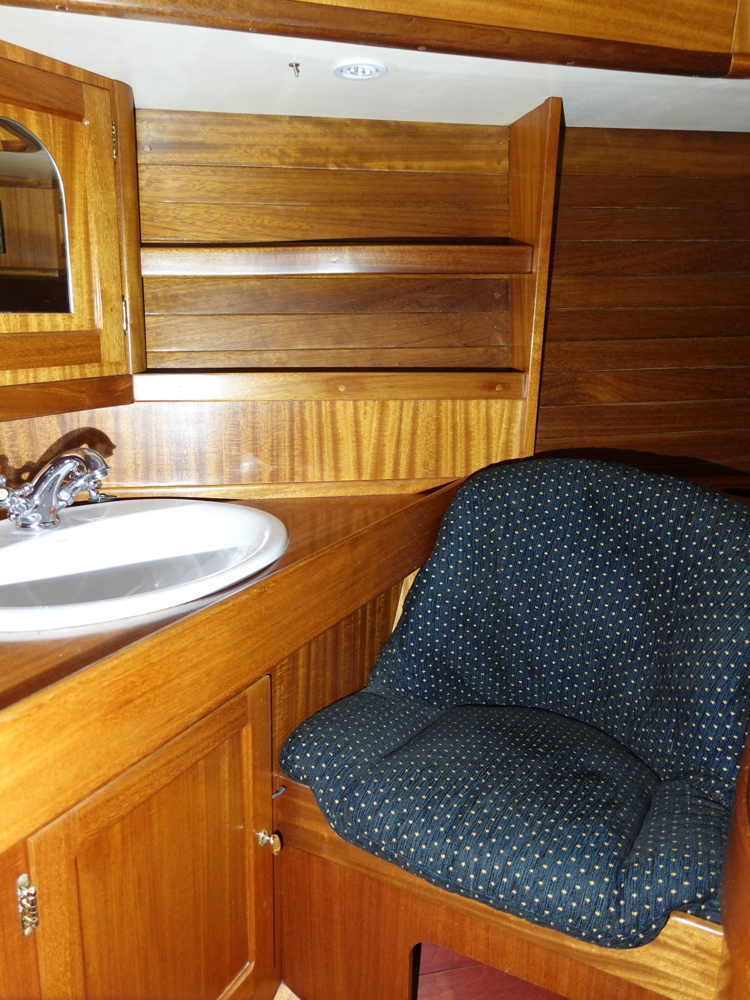

• Wash basin in the bow cabin
• Water pressure cold and warm in pantry and toilet room
• Hot water via machine and 230 V
• Two stainless steel water tanks total 410 l
• Stainless steel tank 170 l, drain to the outside and cover suction
• Stainless steel diesel tank 230 l
• Motor Yanmar 3JH3E 40 HP with Saildrive
• 3-wing bronze folding propeller (Flex-O-Fold: 17x14-3 R wing set and ISO 30 3-sheet
Nabe and Zinc Annode)

Electricity

• Lighting machine 12 V; 55 Ah
• Starter battery 90 Ah, consumer batteries (AGM technology) 2 x 110 Ah

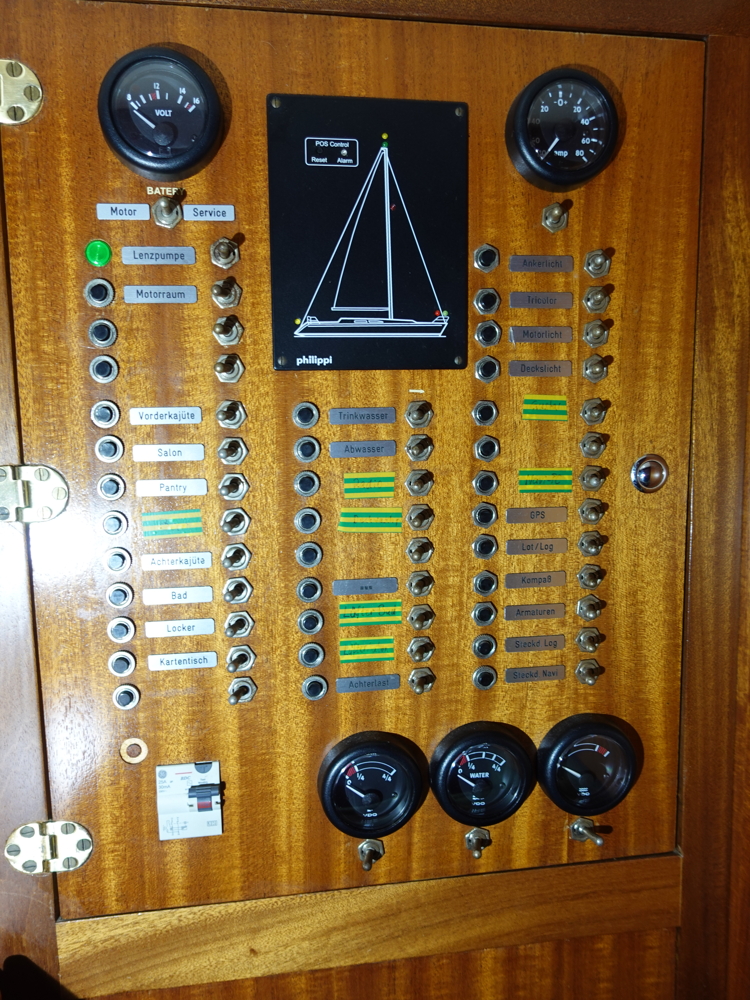

• Switching panel with automatic locks, voltmeter, 12 V output
• Battery Control System BCM II; #6B 0249 (Philippi)
• Diesel, water and faeces tank display
• Battery charger 45 A: automatic charger AL 12/65 #7C19065, X4378 (Philippi)
• 230Vland power connection
• 230 V outputs at the card table, in the pantry and in the technical room
• Mini-computer for navigation on the map table
• Approved navigation light (Top light: Lopolight) and top light on the mast (HELLA
Ultra-Beam Standard FF incl. 24V 70W H3 incandescent lamp)

Further:

• Large case, Fokfall and Dirk: Liros Racer XT
• Four decorative lines 15 m, 16 mm
• Six Fenders
• Flag stick
• Manual and electric bilge pump
• Two fire extinguishers

Other accessories:

• Mainsail cover
• Cover for wheel and instruments
• 2 m long wooden boot hooks, fenders, fender covers
• Gangway
• Trailer

Subject to derogations.

Condition & History of Lotte

The Dream 38 is in a very good condition. The interior is well maintained. Some maintenance work on the outside ship, which regularly arrives, is necessary (e.g. underwater ship, running deck, etc.).

The boat was built in 2003. We bought it for the sailing season 2004. There was no change of ownership.

In handling and care of the boat we have always been very conscientious and very careful. The interior is therefore very good from the state. Technical improvements and repairs made at our sailing times are worth the boat. We always placed great emphasis on optimising the sailing characteristics on the one hand and a good life on board, housing and aesthetics on the other.

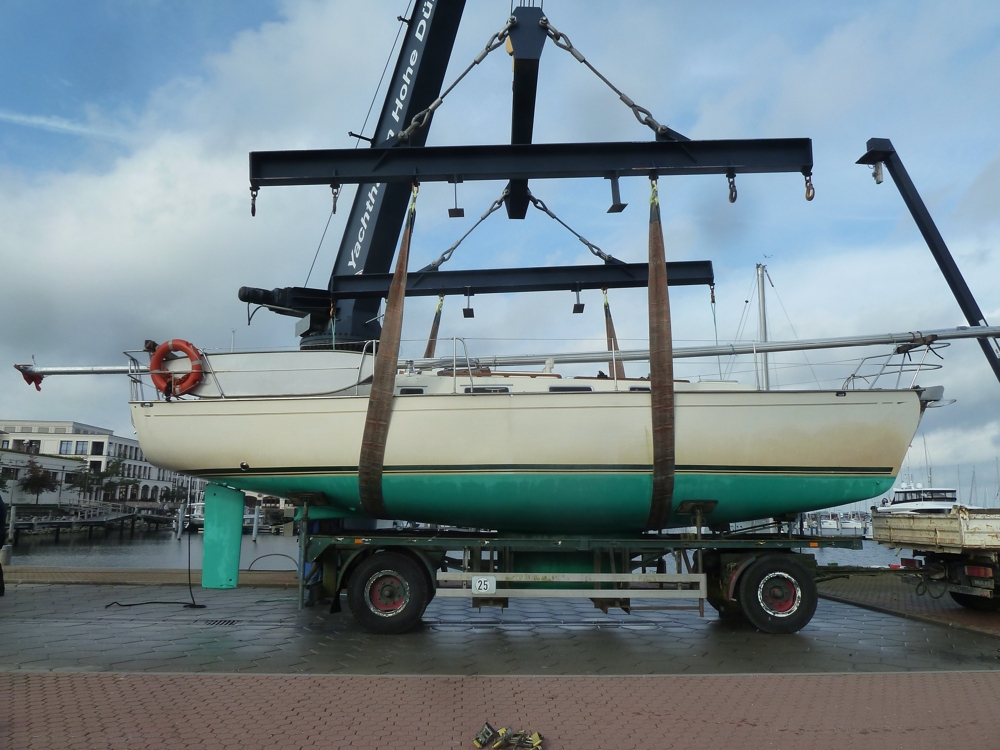

Since the purchase of our one-master we sailed the boat annually in the sailing season, including 2020. In the winter half year it stood well protected under a tent roof or covered with a tarpaulin on the trailer on land and was held by us by our own hands (submarine care, running deck care, repairs, technical improvements, accessories renewals, etc.).

Dream 38 has been on the ground since autumn 2020. All the cushions and movable inner parts including the bilge boards are removed and stored protected and dry – as in any winter.

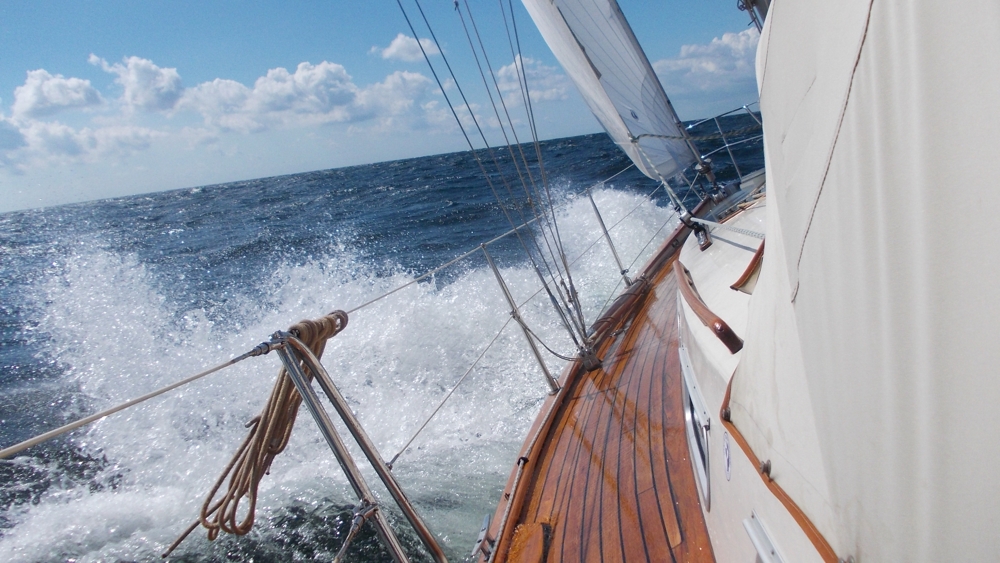

It is a boat for all seas and can also be the faithful companion to the world sailor. We ourselves have been traveling with him mainly in the Scandinavian latitudes, like lying and much ahead of anchor, and are always safely sailed by heavy storms and high wind strengths.

We sailed our yacht for two. Smoking-free, animal-free. Now we want to give them to the hands of the next generation of passionate sailors, who hopefully will spend at least as much joyful as exciting and happy times. The freedom you feel when sailing is known to be incomparable!

Our lotte is also suitable as a mobile home. This possibility has taken us through all times.

Contact: +49 162 9896727; info@mathildehelm.com
